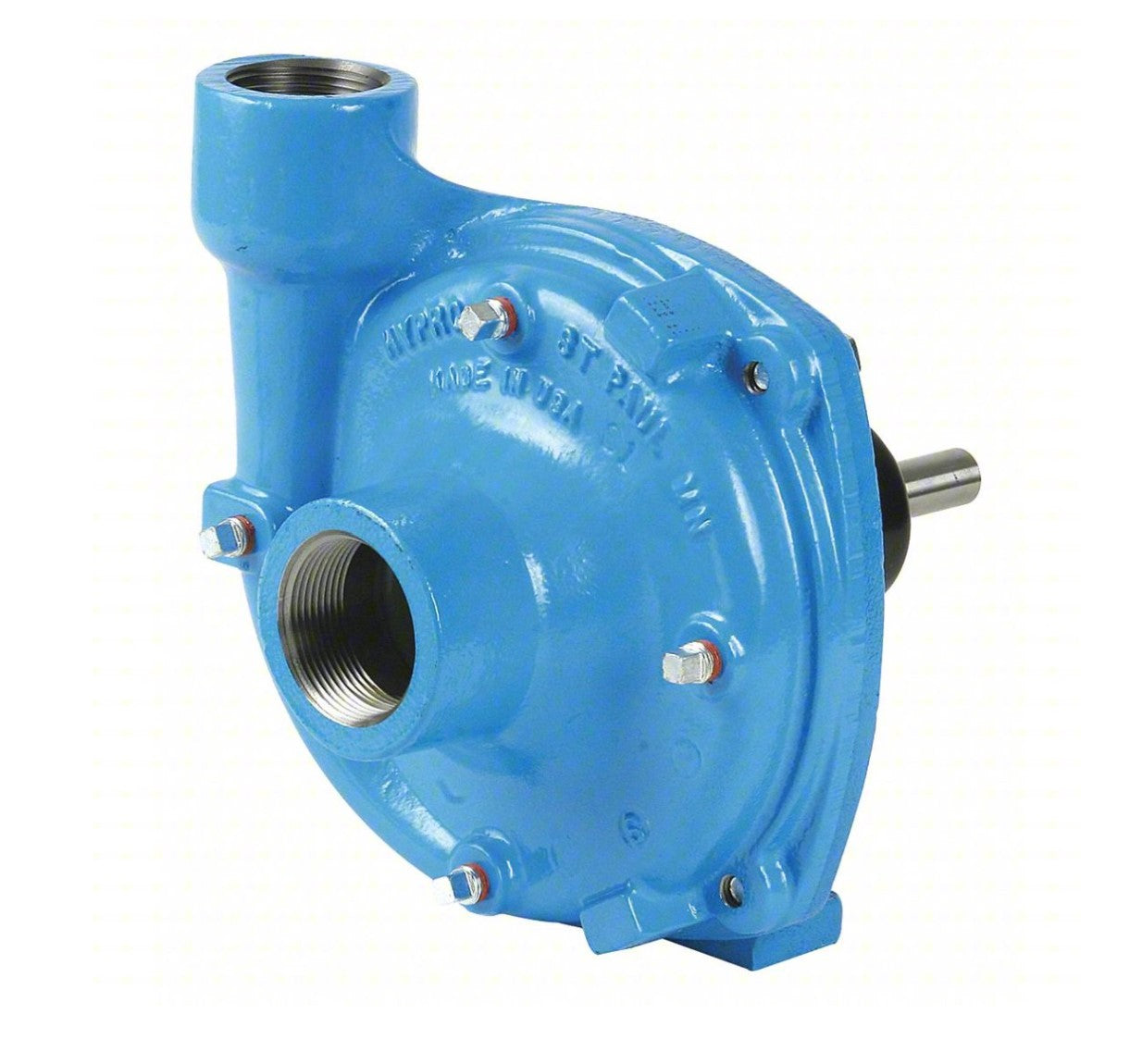

Hypro Pedestal Pump | 16 HP, 393 ft Head, 5/8 in Shaft | High-Pressure Performance

Hypro Pedestal Pump | 16 HP, 393 ft Head, 5/8 in Shaft | High-Pressure Performance

SKU:9203C

Regular price $645.57 USD
Regular price Sale price $645.57 USD
Sale PRE-ORDER
Shipping calculated at checkout.

Hypro Pedestal Pump – Unmatched Power and Efficiency for Demanding Applications

The Hypro Pedestal Pump is the ultimate solution for high-performance fluid transfer and spraying needs, designed for heavy-duty use in both agricultural and industrial environments. Built to accommodate engines up to 16 horsepower, this robust pump provides superior power and reliability, ensuring smooth, consistent operation even under the most challenging conditions.

With a maximum head of 393 feet, the Hypro Pedestal Pump excels in delivering high-pressure output, making it ideal for a variety of high-flow applications, including crop spraying, irrigation systems, and industrial processes. Its 5/8-inch shaft output diameter ensures optimal compatibility with various engine setups, providing exceptional power transfer and reducing the risk of wear and tear over time.

Constructed with premium materials for enhanced durability and long-lasting performance, the Hypro Pedestal Pump is engineered to withstand the rigors of demanding industrial and agricultural tasks. Whether you're looking to improve the efficiency of your spraying operations or need a reliable pump for heavy-duty industrial applications, this pedestal pump is your go-to choice for performance you can count on.

Key Features:

  • 16 HP Compatibility: Designed to work seamlessly with engines up to 16 horsepower.

  • 393 ft Max Head: Ideal for high-pressure applications that require long-distance fluid transfer.

  • 5/8 in Shaft Output Diameter: Ensures efficient power transmission for smooth, high-performance operation.

  • Durable Construction: Built with high-quality materials for long-lasting, reliable service.

  • Versatile Use: Perfect for agricultural spraying, irrigation, and industrial fluid handling.

Maximize your operational efficiency and reduce downtime with the Hypro Pedestal Pump – the pump engineered for power, precision, and durability in demanding environments.

______________________________________________

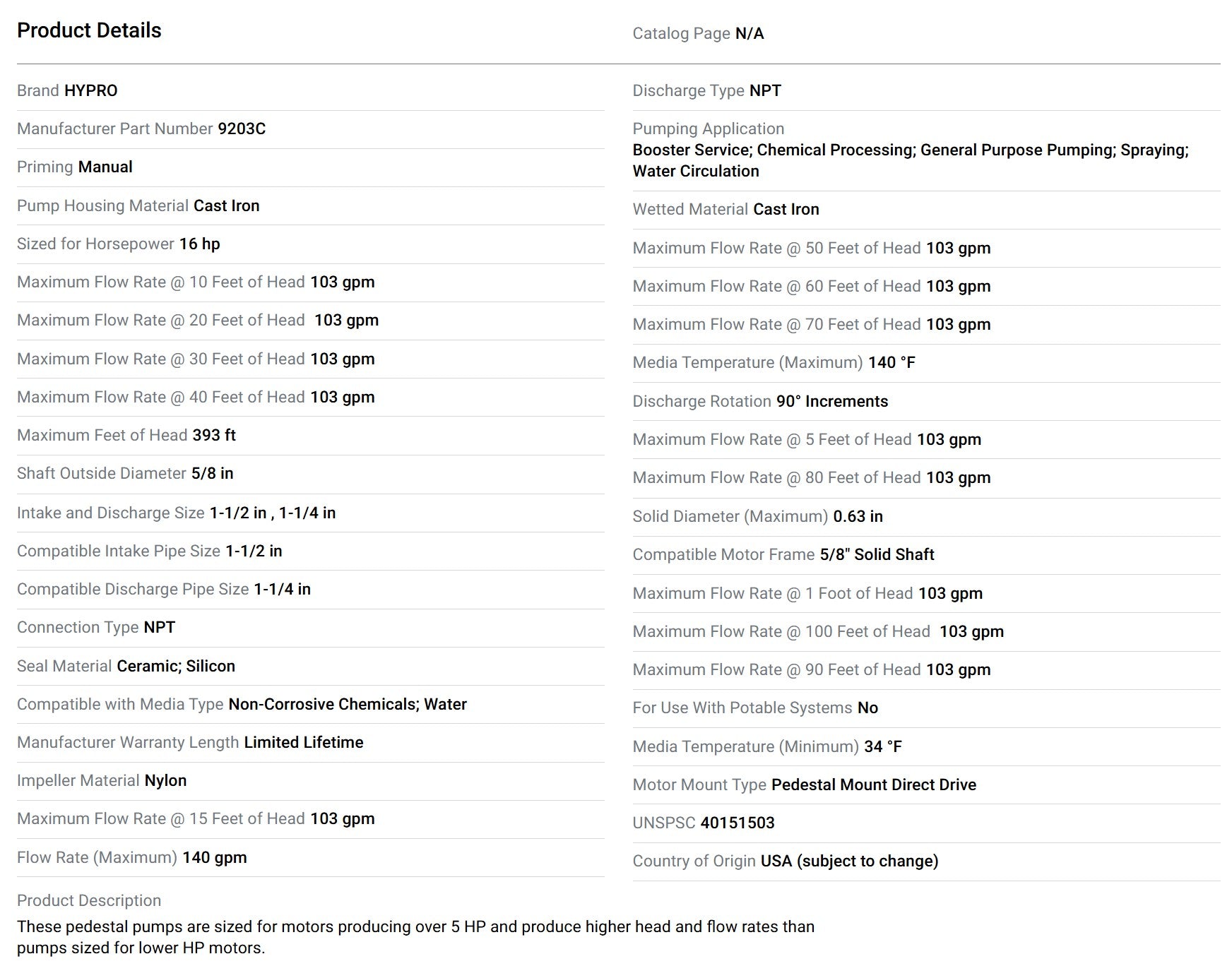

BrandHYPRO
Manufacturer Part Number:  9203C
PrimingManual
Pump Housing MaterialCast Iron
Sized for Horsepower16 hp
Maximum Flow Rate @ 10 Feet of Head103 gpm
Maximum Flow Rate @ 20 Feet of Head 103 gpm
Maximum Flow Rate @ 30 Feet of Head103 gpm
Maximum Flow Rate @ 40 Feet of Head103 gpm
Maximum Feet of Head393 ft
Shaft Outside Diameter5/8 in
Intake and Discharge Size1-1/2 in , 1-1/4 in
Compatible Intake Pipe Size1-1/2 in
Compatible Discharge Pipe Size1-1/4 in
Connection TypeNPT
Seal MaterialCeramic; Silicon
Compatible with Media TypeNon-Corrosive Chemicals; Water
Manufacturer Warranty LengthLimited Lifetime
Impeller MaterialNylon
Maximum Flow Rate @ 15 Feet of Head103 gpm
Flow Rate (Maximum)140 gpm
Discharge TypeNPT
Pumping ApplicationBooster Service; Chemical Processing; General Purpose Pumping; Spraying; Water Circulation
Wetted MaterialCast Iron
Maximum Flow Rate @ 50 Feet of Head103 gpm
Maximum Flow Rate @ 60 Feet of Head103 gpm
Maximum Flow Rate @ 70 Feet of Head103 gpm
Media Temperature (Maximum)140 °F
Discharge Rotation90° Increments
Maximum Flow Rate @ 5 Feet of Head103 gpm
Maximum Flow Rate @ 80 Feet of Head103 gpm
Solid Diameter (Maximum)0.63 in
Compatible Motor Frame5/8" Solid Shaft
Maximum Flow Rate @ 1 Foot of Head103 gpm
Maximum Flow Rate @ 100 Feet of Head 103 gpm
Maximum Flow Rate @ 90 Feet of Head103 gpm
For Use With Potable SystemsNo
Media Temperature (Minimum)34 °F
Motor Mount TypePedestal Mount Direct Drive
UNSPSC40151503
Country of OriginUSA (subject to change)



Product Description:
These pedestal pumps are sized for motors producing over 5 HP and produce higher head and flow rates than pumps sized for lower HP motors.

Notes: Hypro pedestal pump, 393 ft max head pump, 16 HP pump, 5/8 inch shaft pump, high-pressure pump, agricultural pump, industrial sprayer pump, Hypro pump specs, pedestal sprayer pump
